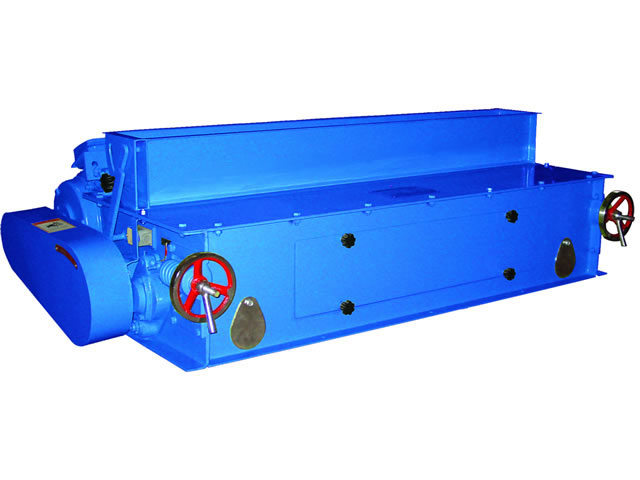

Cracker
Performance features:
It is applied extensively to the crushing of livestock and aquatic pellet feed;
Controlled by variable frequency, the roll distributor ensures the even and continuous feeding of material on the whole width of the crush roller;
It ensures the material are evenly crushed so as to prolong the service life of crush roller;
Taking advantage of the speed differences of the two rolls, the roll crusher achieved the crushing of particles ranging from Φ1.2mm to Φ5.0mm with high rate of finished products and low rate of flour content;
Roll crusher with special gear pitch and gear shape are available to meet the need of users for different particle sizes after cracking.
Major Technicai Parameters
| Product model | TLSSLG15*80 | TLSSLG15*100 | TLSSLG15*150 | TLSSLG15*170 | TLSSLG20*80 |
|---|---|---|---|---|---|
| Main engine power (KW) | 4 | 5.5 | 7.5 | 15 | 5.5+0.75 |
| production capacity (t/h) | 4 | 6 | 10 | 20 | 5 |
